Shanghai DOBY Smart Equipment Co., Ltd

Products >> Elevator >> Passenger Elevator

  • 630KG Small Machine room Passenger Elevator
  • 630KG Small Machine room Passenger Elevator
630KG Small Machine room Passenger Elevator 630KG Small Machine room Passenger Elevator

630KG Small Machine room Passenger Elevator

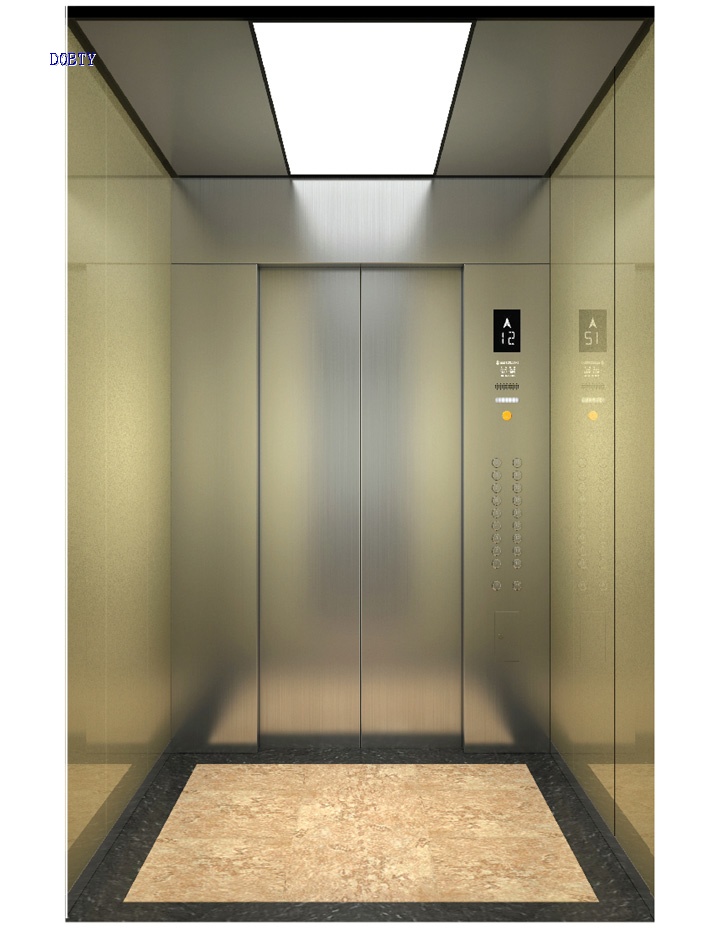

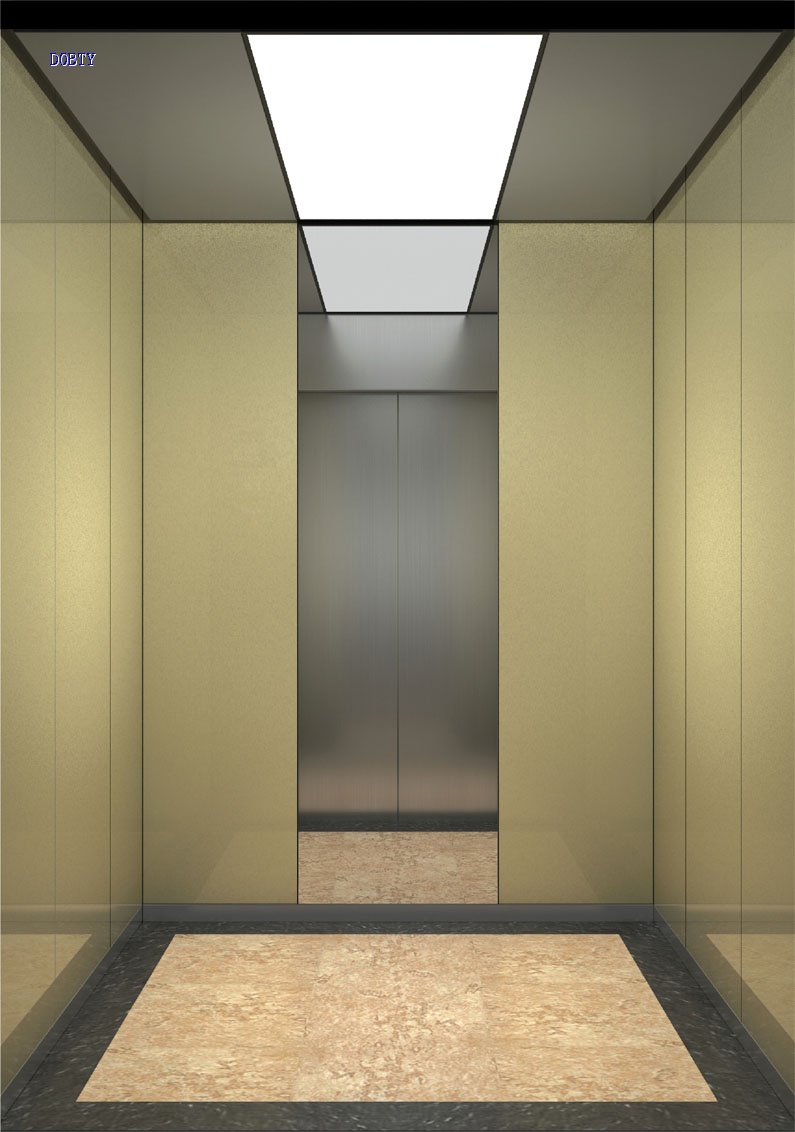

630KG Small Machine Room Passenger Elevator
Type Passenger Elevator , Villa elevator, residential elevator
Model DB-CS05A
Elevator Ceiling Double Type Ceiling+LED Light
Rear  Cabin  Wall Mittor Stainless Steel +Champagne Car metal painting
Side  Cabin  Wall Champagne Car metal painting
Cabin Door And Landing door Champagne Car metal painting
Floor PVC  or Marble or  make design as client requirement
COP integrated COP
LOP/HOP Slim elevator LOP/ HOP
Handrail No handrail or make design as client requirement
Display Type Dot Matrix
Elevator Button Type  Round Type

About Shanghai DOBY Smart Equipment Co., Ltd

Shanghai DOBY Smart Equipment Co., Ltd. is an industry leader in elevator main components.
Facing the future, the company will uphold the corporate philosophy of " Honesty is the best policy, pursuit of excellence", carry forward the "unity, dedication, innovation, and pragmatic" corporate spirit, consolidate superior resources and growth forces in the global elevator market, and strive to become a world-renowned elevator Component suppliers and service providers.
Shanghai DOBY Smart Equipment Co., Ltd. mainly sells complete elevator series, escalator series and their main parts: elevator door series, traction machine series, cabin series, control system series, safety component products, Escalator Step, Escalator Handrail and Escalator Step chain. Most of the products, such as elevators, escalators, elevator doors, traction machines, and speed limiters have passed CE certification and obtained TUV international certification for fire doors.

zt04 zt05
zt01 zt02

Small Machine Room Passenger Elevator Parameter
Rated Load(KG) Cabin Size(mm)
Width(CW)✖ Depth(CD)
Door Opening(mm)
Width(DW )✖ Height(DH)
Shaft Size(mm)
Width(HW)✖ Depth(HD)
630 1400✖1100 800✖2100 2000✖1700
800 1400✖1350 800✖2100 2000✖1950
1000 1600✖1500 900✖2100 2200✖2120
1150 1800✖1500 1000✖2100 2400✖2100
1350 2000✖1500 1100✖2100 2600✖2120
1600 2000✖1750 1100✖2100 2600✖2450
